mitkHistogram1D Class Reference

mitkHistogram1D - a tool to generate a 1D histogram from a volume More...

#include <mitkHistogram1D.h>

Inherits mitkObject.

Inheritance diagram for mitkHistogram1D:

Inheritance graph
[legend]

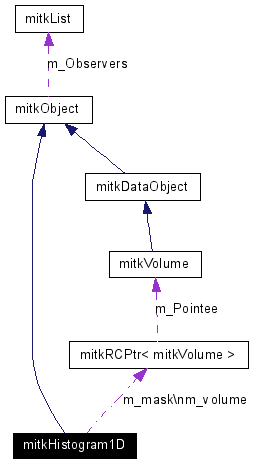

Collaboration diagram for mitkHistogram1D:

Collaboration graph
[legend]
List of all members.

Public Member Functions

void SetSourceVolume (mitkVolume *vol, int chIdx=-1, unsigned int *extent=NULL, mitkVolume *mask=NULL)
void SetRange (double min, double max, unsigned int intervalNum)
void GetRange (double &min, double &max, unsigned int &intervalNum) const
double GetMaxPixVal ()
double GetMinPixVal ()
double GetMeanPixVal ()
double GetStandardDeviation ()
unsigned long GetTotalPixels ()
unsigned long * GetStatistics ()
bool IsModified ()
void SetUnmodified ()
mitkVolumeGetSourceVolume ()

Detailed Description

mitkHistogram1D - a tool to generate a 1D histogram from a volume

mitkHistogram1D is a tool to generate a 1D histogram from a volume


Member Function Documentation

double mitkHistogram1D::GetMaxPixVal  )


Get the maximum pixel value within the specified extent

Returns:
Return the maximum pixel value within the specified extent

double mitkHistogram1D::GetMeanPixVal  )


Get the average pixel value within the specified extent, this will trigger the calculation

Returns:
Return the average pixel value within the specified extent

double mitkHistogram1D::GetMinPixVal  )


Get the minimum pixel value within the specified extent this will trigger the calculation

Returns:
Return the minimum pixel value within the specified extent

void mitkHistogram1D::GetRange double &  min,
double &  max,
unsigned int &  intervalNum
const [inline]


////////////////// Get the value range and interval where statistics are calculated,

Parameters:
min Recieve the min value of histogram
max Recieve the max value of histogram
intervalNum Recieve number of intervals between min and max

mitkVolume* mitkHistogram1D::GetSourceVolume  )  [inline]


Get the volume whose histogram is generated

Returns:
Return the volume whose histogram is generated

double mitkHistogram1D::GetStandardDeviation  )


Get the standard deviation of pixel value within the specified extent, this will trigger the calculation

Returns:
Return the standard deviation of pixel value within the specified extent

unsigned long* mitkHistogram1D::GetStatistics  )


Get histogram statistics, this will trigger the calculation

Returns:
Return the histogram statistics, the array is as large as intervalNum

unsigned long mitkHistogram1D::GetTotalPixels  )


Get the total number of pixels within the specified extent

Returns:
Return the total number of pixels within the specified extent

bool mitkHistogram1D::IsModified  )


Get the modified status of the histogram

Returns:
whether the histogram is modified after last call to SetUnmodified()

void mitkHistogram1D::SetRange double  min,
double  max,
unsigned int  intervalNum


////////////////// Set the value range and interval where to calculate statistics, this will allocate memory for statistics

Parameters:
min Specify the min value of histogram
max Specify the max value of histogram
intervalNum Specify number of intervals between min and max

void mitkHistogram1D::SetSourceVolume mitkVolume vol,
int  chIdx = -1,
unsigned int *  extent = NULL,
mitkVolume mask = NULL


Set the volume whose histogram is to be generated

Parameters:
vol Specify pointer to the volume
chIdx Specify the channel of the the histogram, if the value is greater or equal than the number of channel present or smaller than zero, an average of all channels will be genrated.
extent Specify (optionally) the region of the volume to generate the histogram. NULL means to take the whole volume into consideration.

void mitkHistogram1D::SetUnmodified  )


Set the modified status the false


The documentation for this class was generated from the following file:
