mitkDICOMWriter Class Reference

mitkDICOMWriter - a concrete writer for writing a volume to DICOM image files More...

#include <mitkDICOMWriter.h>

Inherits mitkVolumeWriter.

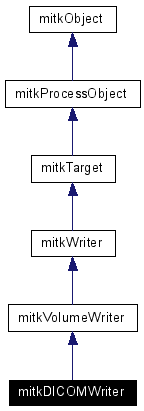

Inheritance diagram for mitkDICOMWriter:

[legend]Collaboration diagram for mitkDICOMWriter:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	SetStudyUID (const string &uid)
void	SetSeriesUID (const string &uid)

---

Detailed Description

mitkDICOMWriter - a concrete writer for writing a volume to DICOM image files

mitkDICOMWriter writes a volume to a set of DICOM image files. Because the volume is a 3D dataset, it may contain many slices. So the file names must be generated and passed to writer properly.
DICOM files to be writen will take format as follows:
Media Storage SOP Class : Not Specified (UID = "");
Media Storage SOP Instance : Not Specified (UID = "");
Transfer Syntax : Explicit VR Little Endian (UID = "1.2.840.10008.1.2.1");
Implementation Class : Not Specified (UID = "");
Implementation Version Name : Ignored;
Source Application Entity Title : Ignored;
Private Information Creator UID and Private Information : Ignored;

Each file will contain one single image of an image series.
To use this writer, the code snippet is:

    mitkDICOMWriter *aWriter = new mitkDICOMWriter;
    aWriter->SetInput(aVolume);
    int imageNum = aVolume->GetImageNum();
    Gerenate file names into files[imageNum];
    for(int i = 0; i < imageNum; i++)
        aWriter->AddFileName(files[i]);
    aWriter->Run();

---

Member Function Documentation

virtual void mitkDICOMWriter::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkVolumeWriter.

void mitkDICOMWriter::SetSeriesUID (  const string &  uid  )

Set Series UID. Parameters: uid  a const reference to a string contains UID

void mitkDICOMWriter::SetStudyUID (  const string &  uid  )

Set Study UID. Parameters: uid  a const reference to a string contains UID

---

The documentation for this class was generated from the following file:

• mitkDICOMWriter.h

---
