mitkFootprint1DGaussian Class Reference

mitkFootprint1DGaussian - concrete class for one dimensional footprint with Gaussian kernel More...

#include <mitkFootprint1DGaussian.h>

Inherits mitkFootprint1D.

Inheritance diagram for mitkFootprint1DGaussian:

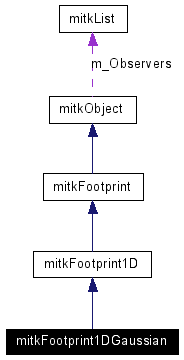

[legend]Collaboration diagram for mitkFootprint1DGaussian:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkFootprint1DGaussian ()
void	SetCoefficient (float coeff)
void	SetAdjustRadii (float adjustradii)
void	SetVarianceMatrix (float vmatrix[4])
float	GetCoefficient ()
float	GetAdjustRadii ()
void	GetVarianceMatrix (float vmatrix[4])
virtual float *	EncodeFootprintTable ()
virtual float	DecodeFootprintTable (float x, float y)
float	DecodeFootprintTable (float rs)

---

Detailed Description

mitkFootprint1DGaussian - concrete class for one dimensional footprint with Gaussian kernel

mitkFootprint1DGaussian is a concrete class to encode and decode one dimensional footprint table using Gaussian kernel. The Gaussian footprint function is as follows: footprint(x,y) = coeff * exp{-[(x,y) * F^(-1) * (x,y)']/adjustradii} , where "coeff" is the weight coefficient, adjustradii is the adjust radii coefficient, _ _ | vmatrix[0] vmatrix[2] | and "F" is the variance matrix = | | |_ vmatrix[1] vmatrix[3] _| the code snippet to use this class is:

    mitkFootprint1DGaussian *footprint = new mitkFootprint1DGaussian;
    footprint->SetCoefficient(coeff);
    footprint->SetAdjustRadii(adjustradii);
    footprint->SetVarianceMatrix(vmatrix);
    footprint->SetRadiiSquare(rs);
    footprint->SetSampleNumber(num);
    table = footprint->EncodeFootprintTable();
    .....
    if(table)
      { value = footprint->DecodeFootprintTable(x, y); }

---

Constructor & Destructor Documentation

mitkFootprint1DGaussian::mitkFootprint1DGaussian (   )

Constructor of the class

---

Member Function Documentation

float mitkFootprint1DGaussian::DecodeFootprintTable (  float  rs  )

Decode the footprint table. Parameters: rs  Radii square in radial direction. Returns: Return the corresponding value in the footprint table.

virtual float mitkFootprint1DGaussian::DecodeFootprintTable (  float  x, float  y )  [virtual]

Decode the footprint table. Parameters: x  Coordinate value in horizon axis. y  Coordinate value in vertical axis. Returns: Return the corresponding value in the footprint table. Reimplemented from mitkFootprint.

virtual float* mitkFootprint1DGaussian::EncodeFootprintTable (   )  [virtual]

Encode the footprint table. Returns: Return the entry of the footprint table. Reimplemented from mitkFootprint.

float mitkFootprint1DGaussian::GetAdjustRadii (   )  [inline]

Get the adjust radii coefficient of Gaussian kernel. Returns: Return the adjust radii coefficient of Gaussian kernel.

float mitkFootprint1DGaussian::GetCoefficient (   )  [inline]

Get the weight coefficient of Gaussian kernel. Returns: Return the weight coefficient of Gaussian kernel.

void mitkFootprint1DGaussian::GetVarianceMatrix (  float  vmatrix[4]  )

Get the variance matrix of Gaussian kernel. Parameters: vmatrix[0]  Element of variance matrix at (row, column) = (0, 0). vmatrix[1]  Element of variance matrix at (row, column) = (1, 0). vmatrix[2]  Element of variance matrix at (row, column) = (0, 1). vmatrix[3]  Element of variance matrix at (row, column) = (1, 1).

virtual void mitkFootprint1DGaussian::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkFootprint1D.

void mitkFootprint1DGaussian::SetAdjustRadii (  float  adjustradii  )  [inline]

Set the adjust radii coefficient of Gaussian kernel. Parameters: adjustradii  The adjust radii coefficient of Gaussian kernel.

void mitkFootprint1DGaussian::SetCoefficient (  float  coeff  )  [inline]

Set the weight coefficient of Gaussian kernel. Parameters: coeff  The weight coefficient of Gaussian kernel.

void mitkFootprint1DGaussian::SetVarianceMatrix (  float  vmatrix[4]  )

Set the variance matrix of Gaussian kernel. Parameters: vmatrix[0]  Element of variance matrix at (row, column) = (0, 0). vmatrix[1]  Element of variance matrix at (row, column) = (1, 0). vmatrix[2]  Element of variance matrix at (row, column) = (0, 1). vmatrix[3]  Element of variance matrix at (row, column) = (1, 1).

---

The documentation for this class was generated from the following file:

• mitkFootprint1DGaussian.h

---
