mitkTIFFWriter Class Reference

mitkTIFFWriter - a concrete writer for writing a volume to TIFF image files More...

#include <mitkTIFFWriter.h>

Inherits mitkVolumeWriter.

Inheritance diagram for mitkTIFFWriter:

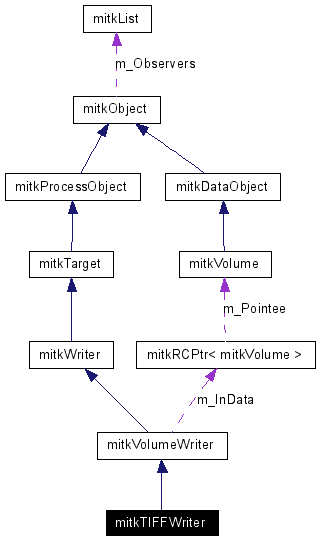

[legend]Collaboration diagram for mitkTIFFWriter:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)

---

Detailed Description

mitkTIFFWriter - a concrete writer for writing a volume to TIFF image files

mitkTIFFWriter writes a volume to a set of TIFF image files. Because the volume is a 3D dataset, it may contain many slices. So the file names must be generated and passed to writer properly. To use this writer, the code snippet is:

    mitkTIFFWriter *aWriter = new mitkTIFFWriter;
    aWriter->SetInput(aVolume);
    int imageNum = aVolume->GetImageNum();
    Gerenate file names into files[imageNum];
    for(int i = 0; i < imageNum; i++)
        aWriter->AddFileName(files[i]);
    aWriter->Run();

---

Member Function Documentation

virtual void mitkTIFFWriter::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkVolumeWriter.

---

The documentation for this class was generated from the following file:

• mitkTIFFWriter.h

---
