mitkVersorRigid3DTransform Class Reference

mitkVersorRigid3DTransform - a concrete transform to perform 3d rigid transformation More...

#include <mitkVersorRigid3DTransform.h>

Inherits mitkTransform.

Inheritance diagram for mitkVersorRigid3DTransform:

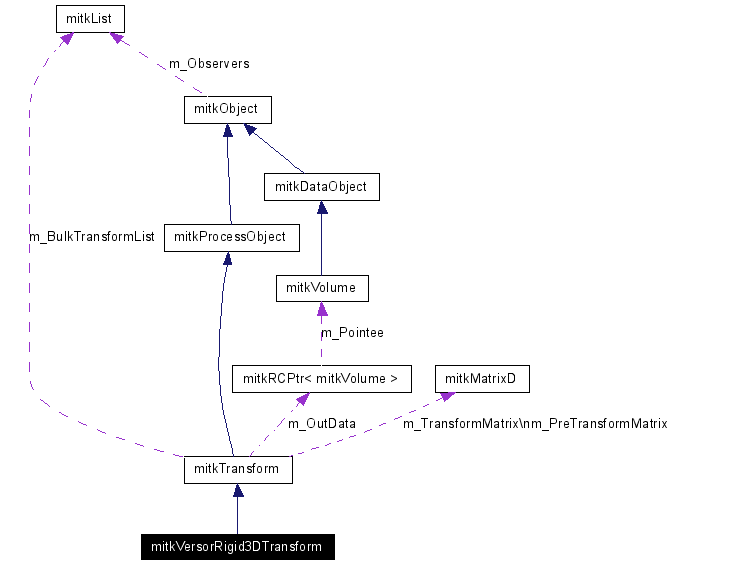

[legend]Collaboration diagram for mitkVersorRigid3DTransform:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkVersorRigid3DTransform ()
const MatrixType &	GetJacobian (const VectorParameterType &inPoint)
virtual void	ConvertTransformMaxtrixToVector ()
void	GetVersor (ScalarParameterType &x, ScalarParameterType &y, ScalarParameterType &z, ScalarParameterType &w)
void	GetAngles (ScalarParameterType &alpha, ScalarParameterType &beta, ScalarParameterType &gamma)
void	GetTranslations (ScalarParameterType &tx, ScalarParameterType &ty, ScalarParameterType &tz)
Protected Member Functions
virtual void	ComputeTransformMatrix ()

---

Detailed Description

mitkVersorRigid3DTransform - a concrete transform to perform 3d rigid transformation

This transform applies rotation and translation to the 3D image space. There are 6 elements in transform parameter vector, the first 3 elements are the components of the versor representation of 3D rotation, the last 3 parameters defines the translation in each dimension.

Transform Mode Number of parameters p[0] p[1] p[2] p[3] p[4] p[5]

MITK_TRANSFORM_VERSOR_RIGID_3D 6 vx vy vz tx ty tz

---

Constructor & Destructor Documentation

mitkVersorRigid3DTransform::mitkVersorRigid3DTransform (   )

Constructor.

---

Member Function Documentation

virtual void mitkVersorRigid3DTransform::ComputeTransformMatrix (   )  [protected, virtual]

Calculate the transform matrix. Returns: Return true if the computation is performed without error. Reimplemented from mitkTransform.

virtual void mitkVersorRigid3DTransform::ConvertTransformMaxtrixToVector (   )  [virtual]

Convert transform matrix to transform parameter vector. This function operates on build-in data. Reimplemented from mitkTransform.

void mitkVersorRigid3DTransform::GetAngles (  ScalarParameterType &  alpha, ScalarParameterType &  beta, ScalarParameterType &  gamma )

Get the rotation parameters from the transform parameter vector. Parameters: alpha  The returned angle value. (rotate around x-axis) beta  The returned angle value. (rotate around y-axis) gamma  The returned angle value. (rotate around z-axis)

const MatrixType& mitkVersorRigid3DTransform::GetJacobian (  const VectorParameterType &  inPoint  )  [virtual]

Get the Jacobian matrix. Parameters: inPoint  The index of the point in image. Returns: Return the pointer to the Jacobian matrix. Reimplemented from mitkTransform.

void mitkVersorRigid3DTransform::GetTranslations (  ScalarParameterType &  tx, ScalarParameterType &  ty, ScalarParameterType &  tz )

Get the translation parameters from the transform parameter vector. Parameters: tx  The returned x-translation value. ty  The returned y-translation value. tz  The returned z-translation value.

void mitkVersorRigid3DTransform::GetVersor (  ScalarParameterType &  x, ScalarParameterType &  y, ScalarParameterType &  z, ScalarParameterType &  w )

Get the rotation parameters from the transform parameter vector. Parameters: alpha  The returned angle value. (rotate around x-axis) beta  The returned angle value. (rotate around y-axis) gamma  The returned angle value. (rotate around z-axis)

virtual void mitkVersorRigid3DTransform::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkTransform.

---

The documentation for this class was generated from the following file:

• mitkVersorRigid3DTransform.h

---
