mitkGLSLFullVRScene Class Reference

mitkGLSLFullVRScene - a 3D scene for shaded semi-transparent rendering from volume datasets. Accelerated with the GLSL interface. More...

#include <mitkGLSLFullVRScene.h>

Inherits mitkVis2Scene3D.

Inheritance diagram for mitkGLSLFullVRScene:

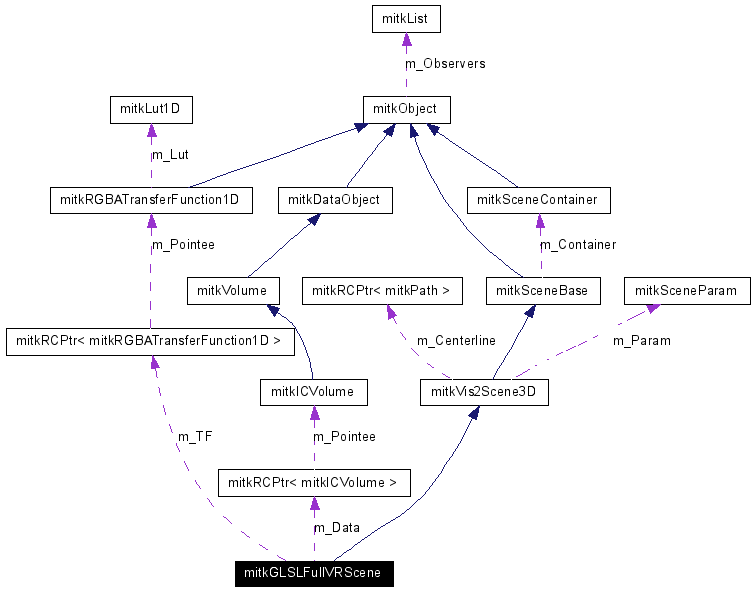

[legend]Collaboration diagram for mitkGLSLFullVRScene:

[legend]List of all members.

Public Member Functions
virtual void	RenderGL ()
void	SetData (mitkICVolume *data)
void	SetDataModified ()
void	SetBackGroundColor (float r, float g, float b)
void	GetBackGroundColor (float &r, float &g, float &b)
mitkRGBATransferFunction1D *	GetTransferFunction ()
void	SetTransferFunction (mitkRGBATransferFunction1D *tf)
void	SetStdSampleDistance (float stdSampleDistance)
float	GetStdSampleDistance ()
void	SetShade (bool shade)
bool	GetShade ()
void	ShadeOn ()
void	ShadeOff ()
void	SetLightDirection (float x, float y, float z)
void	SetLightIntensity (float intensity)
void	SetLightColor (float r, float g, float b)
void	SetAmbient (float value)
float	GetAmbient ()
void	SetDiffuse (float value)
float	GetDiffuse ()
void	SetSpecular (float value)
float	GetSpecular ()
void	SetSpecularPower (float value)
float	GetSpecularPower ()
void	SetSampleDistance (float sd)
float	GetSampleDistance ()
void	RotateLightDirection (bool turnOn)
virtual void	OnMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	OnMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	OnMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos)

---

Detailed Description

mitkGLSLFullVRScene - a 3D scene for shaded semi-transparent rendering from volume datasets. Accelerated with the GLSL interface.

mitkGLSLFullVRScene is a 3D scene for shaded semi-transparent rendering from volume datasets. Accelerated with the GLSL interface. mitkGLSLFullVRScene needs a container subclasses from mitkSceneContainer. You can use mitkGLWindow for the container, or implement your own container.

---

Member Function Documentation

float mitkGLSLFullVRScene::GetAmbient (   )

Get the ambient factor of the material of the isosurface Returns: Return The ambient factor of the material of the isosurface

void mitkGLSLFullVRScene::GetBackGroundColor (  float &  r, float &  g, float &  b )

Return the background color of the scene Parameters: r  Return the red component of the background color. g  Return the green component of the background color. b  Return the blue component of the background color.

float mitkGLSLFullVRScene::GetDiffuse (   )

Get the diffuse factor of the material of the isosurface Returns: Return The diffuse factor of the material of the isosurface

float mitkGLSLFullVRScene::GetSampleDistance (   )

Get the sampling distance of ray traversal. Returns: Return the sampling distance of ray traversal.

bool mitkGLSLFullVRScene::GetShade (   )

Get the shading status Returns: Return the shading status.

float mitkGLSLFullVRScene::GetSpecular (   )

Get the specular factor of the material of the isosurface Returns: Return The specular factor of the material of the isosurface

float mitkGLSLFullVRScene::GetSpecularPower (   )

Get the specular power of the material of the isosurface Returns: Return The specular power of the material of the isosurface

float mitkGLSLFullVRScene::GetStdSampleDistance (   )

Get the standard sample distance where the opacity of each step equals to the alpha channel of the transfered value. Returns: Return the standard sample distance

mitkRGBATransferFunction1D* mitkGLSLFullVRScene::GetTransferFunction (   )

Get the transfer function Returns: Return the transfer function.

virtual void mitkGLSLFullVRScene::OnMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse pressed event pass by the container Reimplemented from mitkVis2Scene3D.

virtual void mitkGLSLFullVRScene::OnMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse moved event pass by the container Reimplemented from mitkVis2Scene3D.

virtual void mitkGLSLFullVRScene::OnMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse released event pass by the container Reimplemented from mitkVis2Scene3D.

virtual void mitkGLSLFullVRScene::RenderGL (   )  [virtual]

The Interface for handling the render event pass by the container Reimplemented from mitkVis2Scene3D.

void mitkGLSLFullVRScene::RotateLightDirection (  bool  turnOn  )

Turn this on to enter the light rotation interaction mode. Parameters: Whether  turn the light rotation mode on.

void mitkGLSLFullVRScene::SetAmbient (  float  value  )

Set the ambient factor of the material of the isosurface Parameters: value  The ambient factor of the material of the isosurface

void mitkGLSLFullVRScene::SetBackGroundColor (  float  r, float  g, float  b )

Set the background color of the scene Parameters: r  Specify the red component of the background color. g  Specify the green component of the background color. b  Specify the blue component of the background color.

void mitkGLSLFullVRScene::SetData (  mitkICVolume *  data  )

Set the data object to be rendered Parameters: data  The data object to be rendered.

void mitkGLSLFullVRScene::SetDataModified (   )

Tell the scene the data is modified when any modification is done to the data object

void mitkGLSLFullVRScene::SetDiffuse (  float  value  )

Set the diffuse factor of the material of the isosurface Parameters: value  The diffuse factor of the material of the isosurface

void mitkGLSLFullVRScene::SetLightColor (  float  r, float  g, float  b )

Set the color of the light source Parameters: r  Specify the red component of the light source color. g  Specify the green component of the light source color. b  Specify the blue component of the light source color.

void mitkGLSLFullVRScene::SetLightDirection (  float  x, float  y, float  z )

Set the light direction Parameters: x  Specify the x component of the light direction. y  Specify the y component of the light direction. z  Specify the z component of the light direction.

void mitkGLSLFullVRScene::SetLightIntensity (  float  intensity  )

Set the light's intensity Parameters: intensity  Light's intensity

void mitkGLSLFullVRScene::SetSampleDistance (  float  sd  )

Set the sampling distance of ray traversal. Parameters: sd  The sampling distance of ray traversal.

void mitkGLSLFullVRScene::SetShade (  bool  shade  )

Turn on or turn off shading. Parameters: shade  The shading status.

void mitkGLSLFullVRScene::SetSpecular (  float  value  )

Set the specular factor of the material of the isosurface Parameters: value  The specular factor of the material of the isosurface

void mitkGLSLFullVRScene::SetSpecularPower (  float  value  )

Set the specular power of the material of the isosurface Parameters: value  The specular power of the material of the isosurface

void mitkGLSLFullVRScene::SetStdSampleDistance (  float  stdSampleDistance  )

Set the standard sample distance where the opacity of each step equals to the alpha channel of the transfered value. Parameters: stdSampleDistance  The standard sample distance

void mitkGLSLFullVRScene::SetTransferFunction (  mitkRGBATransferFunction1D *  tf  )

Set the transfer function Parameters: tf  The transfer function.

void mitkGLSLFullVRScene::ShadeOff (   )

Turn off shading.

void mitkGLSLFullVRScene::ShadeOn (   )

Turn on shading.

---

The documentation for this class was generated from the following file:

• mitkGLSLFullVRScene.h

---
