mitkVis2Scene3D Class Reference

mitkVis2Scene3D - a simple base class for 3D scenes. More...

#include <mitkVis2Scene3D.h>

Inherits mitkSceneBase.

Inherited by mitkCUDAAugmentedSurfaceVRScene, mitkCUDADecomposedIsosurfaceVRScene, mitkCUDADeltaAccStateVRScene, mitkCUDAFullVRScene, mitkCUDAIsosurfaceVRScene, mitkCUDAMIPVRScene, mitkCUDAROIDistanceVRScene, mitkCUDASegmentedVRScene, mitkCUDAStructureFunctionVRScene, mitkCUDAValueBasedStateVRScene, mitkCUDAVersatileVRScene, mitkCUDAWallCarvingVRScene, mitkCUDAWallPenetrateVRScene, mitkFullVRScene, mitkGLSLFullVRScene, mitkGLSLIsosurfaceVRScene, mitkGLSLMIPVRScene, mitkIsosurfaceVRScene, mitkMIPVRScene, mitkPathNetworkScene, mitkTargetMeasurementScene, and mitkVis2SurfaceScene.

Inheritance diagram for mitkVis2Scene3D:

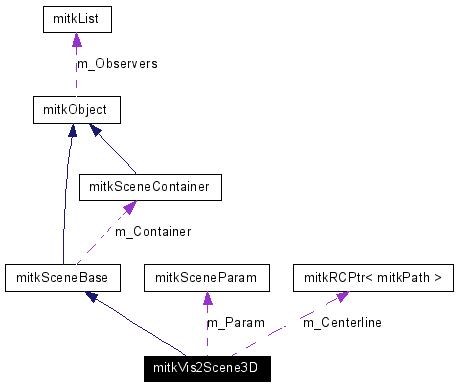

[legend]Collaboration diagram for mitkVis2Scene3D:

[legend]List of all members.

Public Member Functions
void	SetFovy (float fovy)
void	SetRotateRadPerPixel (float radPerPixel)
float	GetRotateRadPerPixel () const
void	SetScaleRatePerPixel (float scaleRatePerPixel)
float	GetScaleRatePerPixel () const
virtual void	ResizeGL (int newX, int newY)
virtual void	RenderGL ()
virtual void	OnMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	OnMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	OnMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos)
void	GetTranslate (float translate[3]) const
float	GetScale () const
const mitkVis2Quaternion &	GetRotation () const
void	SetTranslate (const float translate[3])
void	SetScale (float scale)
void	SetRotation (const mitkVis2Quaternion &rotation)
const mitkVis2Matrix4x4 &	GetViewMatrix () const
const mitkVis2Matrix4x4 &	GetProjectionMatrix () const
float	GetZTranslateBase () const
void	GetViewPort (int *viewport) const
float	GetFovy () const
void	SetEndoscopy (bool turnOn)
bool	GetEndoscopy ()
void	MoveTo (float x, float y, float z)
void	Move (float dx, float dy, float dz)
void	Turn (float dx, float dy)
void	Roll (float rad)

---

Detailed Description

mitkVis2Scene3D - a simple base class for 3D scenes.

mitkVis2Scene3D is a simple base class for 3D scenes.

---

Member Function Documentation

bool mitkVis2Scene3D::GetEndoscopy (   )  [inline]

Get the endoscopy status Returns: : the endoscopy status

float mitkVis2Scene3D::GetFovy (   )  const [inline]

Get the fovy angle. Returns: : The fovy angle.

const mitkVis2Matrix4x4& mitkVis2Scene3D::GetProjectionMatrix (   )  const

Get the projection matrix of the scene Returns: Return the projection matrix of the scene

float mitkVis2Scene3D::GetRotateRadPerPixel (   )  const [inline]

Get the interaction sensitivity of rotation. Returns: Return the rad the object is rotated when the mouse is moved 1 pixel

const mitkVis2Quaternion& mitkVis2Scene3D::GetRotation (  void   )  const [inline]

Get the rotation status of the scene. Returns: Return the rotation quaternion of the scene.

float mitkVis2Scene3D::GetScale (  void   )  const [inline]

Get the scale status of the scene. Returns: Return the scaling rate of the scene.

float mitkVis2Scene3D::GetScaleRatePerPixel (   )  const [inline]

Get the interaction sensitivity of scaling Returns: Return the rate the object is scaled when the mouse is moved 1 pixel

void mitkVis2Scene3D::GetTranslate (  float  translate[3]  )  const

Get the translate status of the scene. Parameters: translate[0]  Return the translate of the scene in x-direction. translate[1]  Return the translate of the scene in y-direction. translate[2]  Return the translate of the scene in z-direction.

const mitkVis2Matrix4x4& mitkVis2Scene3D::GetViewMatrix (   )  const

Get the view matrix of the scene Returns: Return the view matrix of the scene

void mitkVis2Scene3D::GetViewPort (  int *  viewport  )  const [inline]

Get the viewport of this view. Not all of the area of a view is used to display the image. Only the viewport is used to display the image. The position and size of viewport are calculated automatically according to the size of image. Parameters: viewport,:  the viewport size

float mitkVis2Scene3D::GetZTranslateBase (   )  const [inline]

Get the Z direction base translate after scene initialization Returns: Return the Z direction base translate

void mitkVis2Scene3D::Move (  float  dx, float  dy, float  dz )

Endoscopy control: move the view position by (dx,dy,dz) in physics unit Parameters: dx  dy  dz

void mitkVis2Scene3D::MoveTo (  float  x, float  y, float  z )

Endoscopy control: move the view position to (x,y,z) in physics unit Parameters: x  y  z

virtual void mitkVis2Scene3D::OnMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse pressed event pass by the container Reimplemented from mitkSceneBase. Reimplemented in mitkFullVRScene, mitkGLSLFullVRScene, mitkGLSLIsosurfaceVRScene, mitkIsosurfaceVRScene, mitkCUDAAugmentedSurfaceVRScene, mitkCUDADecomposedIsosurfaceVRScene, mitkCUDADeltaAccStateVRScene, mitkCUDAFullVRScene, mitkCUDAIsosurfaceVRScene, mitkCUDAROIDistanceVRScene, mitkCUDASegmentedVRScene, mitkCUDAStructureFunctionVRScene, mitkCUDAValueBasedStateVRScene, and mitkCUDAVersatileVRScene.

virtual void mitkVis2Scene3D::OnMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse moved event pass by the container Reimplemented from mitkSceneBase. Reimplemented in mitkFullVRScene, mitkGLSLFullVRScene, mitkGLSLIsosurfaceVRScene, mitkIsosurfaceVRScene, mitkCUDAAugmentedSurfaceVRScene, mitkCUDADecomposedIsosurfaceVRScene, mitkCUDADeltaAccStateVRScene, mitkCUDAFullVRScene, mitkCUDAIsosurfaceVRScene, mitkCUDAROIDistanceVRScene, mitkCUDASegmentedVRScene, mitkCUDAStructureFunctionVRScene, mitkCUDAValueBasedStateVRScene, and mitkCUDAVersatileVRScene.

virtual void mitkVis2Scene3D::OnMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [virtual]

The Interface for handling the mouse released event pass by the container Reimplemented from mitkSceneBase. Reimplemented in mitkFullVRScene, mitkGLSLFullVRScene, mitkGLSLIsosurfaceVRScene, mitkIsosurfaceVRScene, mitkCUDAAugmentedSurfaceVRScene, mitkCUDADecomposedIsosurfaceVRScene, mitkCUDADeltaAccStateVRScene, mitkCUDAFullVRScene, mitkCUDAIsosurfaceVRScene, mitkCUDAROIDistanceVRScene, mitkCUDASegmentedVRScene, mitkCUDAStructureFunctionVRScene, mitkCUDAValueBasedStateVRScene, and mitkCUDAVersatileVRScene.

virtual void mitkVis2Scene3D::RenderGL (   )  [virtual]

The Interface for handling the render event pass by the container Reimplemented from mitkSceneBase. Reimplemented in mitkFullVRScene, mitkGLSLFullVRScene, mitkGLSLIsosurfaceVRScene, mitkGLSLMIPVRScene, mitkIsosurfaceVRScene, mitkMIPVRScene, mitkTargetMeasurementScene, mitkCUDAAugmentedSurfaceVRScene, mitkCUDADecomposedIsosurfaceVRScene, mitkCUDADeltaAccStateVRScene, mitkCUDAFullVRScene, mitkCUDAIsosurfaceVRScene, mitkCUDAMIPVRScene, mitkCUDAROIDistanceVRScene, mitkCUDASegmentedVRScene, mitkCUDAStructureFunctionVRScene, mitkCUDAValueBasedStateVRScene, and mitkCUDAVersatileVRScene.

virtual void mitkVis2Scene3D::ResizeGL (  int  newX, int  newY )  [virtual]

The Interface for handling the resize event pass by the container Reimplemented from mitkSceneBase.

void mitkVis2Scene3D::Roll (  float  rad  )

Endoscopy control: roll the screen Parameters: rad

void mitkVis2Scene3D::SetEndoscopy (  bool  turnOn  )

Set the endoscopy status Parameters: turnOn,:  the endoscopy status

void mitkVis2Scene3D::SetFovy (  float  fovy  )

Set the fovy angle. Parameters: fovy.  The fovy angle.

void mitkVis2Scene3D::SetRotateRadPerPixel (  float  radPerPixel  )  [inline]

Set the interaction sensitivity of rotation. Parameters: radPerPixel.  The rad the object is rotated when the mouse is moved 1 pixel

void mitkVis2Scene3D::SetRotation (  const mitkVis2Quaternion &  rotation  )

Set the rotation of the scene. Parameters: rotation  The rotation quaternion of the scene.

void mitkVis2Scene3D::SetScale (  float  scale  )

Set the scale status of the scene. Parameters: scale  The scaling rate of the scene.

void mitkVis2Scene3D::SetScaleRatePerPixel (  float  scaleRatePerPixel  )  [inline]

Set the interaction sensitivity of scaling Parameters: scaleRatePerPixel.  The rate the object is scaled when the mouse is moved 1 pixel

void mitkVis2Scene3D::SetTranslate (  const float  translate[3]  )

Set the translate of the scene. Parameters: translate[0]  The translate of the scene in x-direction. translate[1]  The translate of the scene in y-direction. translate[2]  The translate of the scene in z-direction.

void mitkVis2Scene3D::Turn (  float  dx, float  dy )

Endoscopy control: turn the view direction Parameters: dx  dy

---

The documentation for this class was generated from the following file:

• mitkVis2Scene3D.h

---
